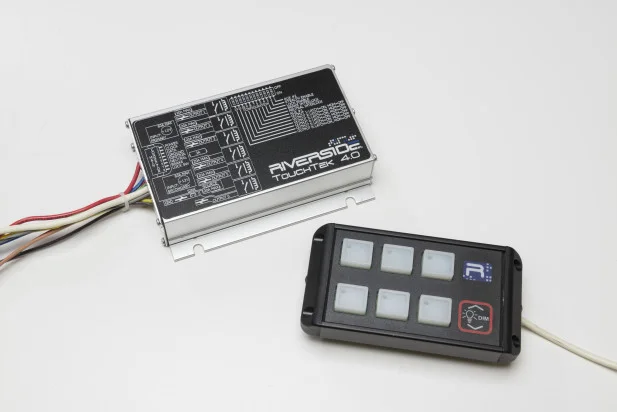

The TouchTek 4.0 consists of a six‐button control panel and an I/O Control module. It provides up to six 20A (fuse protected) independent outputs via dedicated buttons with option to add a second panel in parallel for dual panel control of outputs. T/T 4.0 has audio and visual button press indication provided by speaker and button color. There are options to enable and disable both the speaker and panel light along with brightness adjustment. The outputs can be programmed to be latched or for momentary operation. There are built in warnings and alerts to notify the user of potential error conditions within their system. Also, inputs allow for interlock programming (ignition, neutral, brake, and gun lock timer). The TouchTek 4.0 is designed for the work truck environment needs.

Specifications:
• Size: 5.34” long, 2.81” wide, .94” tall (including buttons)
• Operating Temperature Range: ‐40oC to 80oC
• Environmental Sealing: IP50
• Operating Voltage: 8 – 16VDC
• On State Current Consumption: 500mA approx.
• Protection:
• Reverse polarity
• Backfeed
• Under/over voltage

Features:
• Six 20A output
• <.5 mA quiescent current draw
• Programmable outputs
• Interlock programming
• Speaker / lighting control options
• Built in warnings / alerts
